How Do You Choose Between Bonded or Floating Neutral Generator?

To choose between a bonded or floating neutral generator, you need to understand your specific power needs. A bonded neutral connects the neutral to the generator’s frame, while a floating neutral keeps them separate. Your decision impacts safety and how you can use the generator for different tasks.

Getting this choice right is very important for electrical safety. It affects whether you can safely connect your generator to your home or use it for powering individual tools. We found that most people want to know how to avoid mistakes and stay safe when using a generator.

• Safety first: bonded vs. floating neutral.
• Main uses for each type.
• How to identify your generator’s neutral type.
• What to do if you need to change it.
• Common mistakes to avoid.

Let’s walk through everything you need to know to make the best choice for your generator setup.

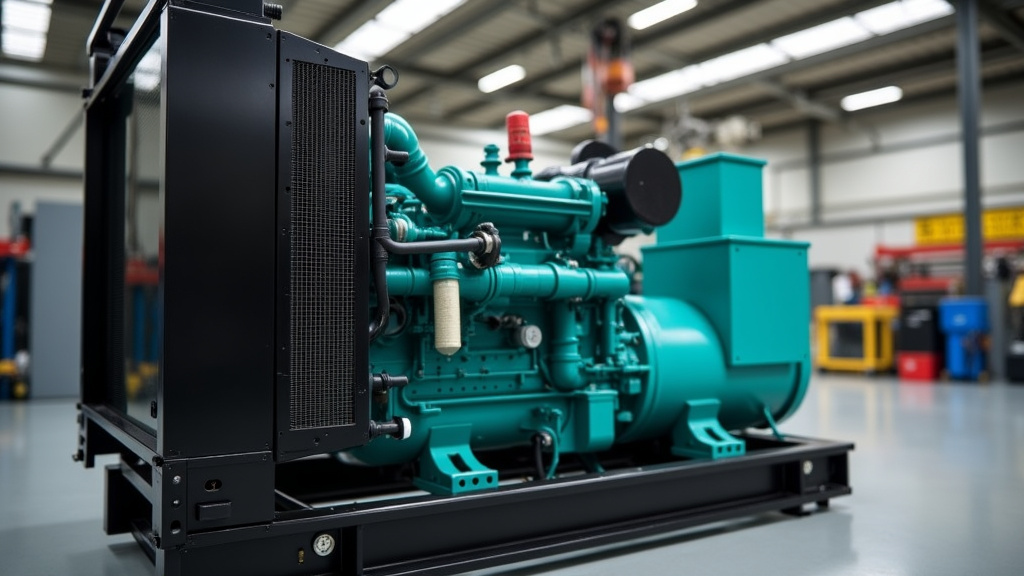

Understanding Your Generator’s Neutral Configuration

You need to know your generator’s neutral type for safety and proper operation. A bonded neutral connects the neutral wire to the generator’s metal frame. A floating neutral keeps the neutral wire isolated from the frame.

What is a Bonded Neutral Generator?

A bonded neutral generator has its neutral wire directly connected to its frame. This connection provides a path for fault currents to safely return to the generator. It’s like having a dedicated “return lane” for electricity if something goes wrong.

Most portable generators come with a bonded neutral from the factory. This design is often required for standalone use where the generator is the sole source of power (OSHA).

What is a Floating Neutral Generator?

In contrast, a floating neutral generator has its neutral wire separate from the generator’s frame. There is no direct connection between the neutral and the ground or frame of the generator. Think of it as the neutral being “free-floating” within the generator’s internal wiring.

This design is common in generators intended for use with a transfer switch. When connected to your home’s electrical panel, your home’s grounding system then handles the neutral-to-ground bond. This prevents multiple ground paths, which can be dangerous.

Why Does Neutral Type Matter for Safety?

The neutral type profoundly impacts electrical safety. Getting it wrong can create hazards like electric shock or fire. Your generator’s neutral configuration is a critical safety feature.

Avoiding Ground Faults and Shocks

A ground fault occurs when electricity takes an unintended path to the ground. Without proper grounding and neutral bonding, this path could be through a person. This is why understanding your generator is so important.

For example, if you touch a faulty appliance plugged into a generator with an incorrect neutral setup, you could become the path for electricity. We found that preventing ground faults is a top priority for generator safety (NFPA).

The Importance of a Single Ground Path

Many experts emphasize having only one neutral-to-ground bond in any electrical system. This ensures that all fault currents flow back to a single, controlled point. Having multiple bonds creates what’s called a “ground loop.”

A ground loop can cause unexpected current flows and make ground fault protection devices ineffective. It can also pose a serious shock hazard. Imagine too many roads leading to the same destination – it creates confusion and traffic jams for electricity.

Primary Uses for Each Generator Type

Your intended use will often dictate whether you need a bonded or floating neutral generator. Different applications have different safety requirements.

When to Use a Bonded Neutral Generator

You should use a bonded neutral generator for standalone applications. This means when the generator is powering individual tools, lights, or appliances directly. You plug items directly into the generator’s outlets.

Examples include camping, tailgating, or powering tools on a job site. In these scenarios, the generator acts as the sole source of power, and its internal bond provides the necessary safety grounding. This is the most common setup for portable generators.

When to Use a Floating Neutral Generator

A floating neutral generator is typically preferred when connecting to your home’s electrical system. This connection is usually done through a manual or automatic transfer switch. The transfer switch ensures your home is isolated from the utility grid.

Your home’s main electrical panel already has a neutral-to-ground bond. Using a floating neutral generator prevents creating a second, dangerous bond. This setup keeps your home’s existing safety mechanisms intact.

You might also use a floating neutral generator if you have sensitive electronics. While not directly related to the neutral type, some setups prefer it for specific grounding schemes (IEEE).

How to Identify Your Generator’s Neutral Type

Knowing your generator’s configuration is key. You can usually find this information in a few places.

Check the Owner’s Manual

The first place to look is always your owner’s manual. Manufacturers clearly state whether the generator has a bonded or floating neutral. This documentation provides specific details about your model.

If you can’t find your physical manual, many manufacturers offer digital versions online. Just search for your generator’s brand and model number.

Look for Labels on the Generator

Some generators have labels indicating their neutral type. You might find a sticker near the control panel or on the frame. Look for phrases like “Bonded Neutral” or “Floating Neutral.”

Sometimes, it might say “System Grounded” or “Non-Separately Derived System” for bonded. For floating, it might say “Separately Derived System” or “Neutral Isolated.”

Perform a Simple Multimeter Test

You can also test your generator with a multimeter if you’re comfortable with basic electrical tests. Always exercise extreme caution when working with electricity. If you are unsure, please consult a qualified electrician.

Here’s a simplified way to test (ensure the generator is OFF for safety when connecting leads, then start it for the test):

1. Set your multimeter to measure continuity (the “ohms” or “beeper” setting).
2. Place one probe on the neutral pin of a 120V outlet.
3. Place the other probe on the bare metal frame of the generator.
4. If the multimeter shows continuity (low resistance or beeps), it’s a bonded neutral.
5. If there’s no continuity (open circuit or no beep), it’s a floating neutral.

Modifying Your Generator’s Neutral Configuration

What if your generator’s neutral type doesn’t match your needs? Can you change it? The answer is sometimes, but with significant caveats.

Why You Might Need to Change It

You might need to change a bonded neutral to a floating neutral if you plan to connect your generator to your home’s electrical panel via a transfer switch. This avoids creating a dangerous double bond. Conversely, you might need to bond a floating neutral for standalone use if it’s not already bonded.

We’ve found that this decision is often driven by evolving power needs. Perhaps you initially bought a generator for camping but now want to back up your home.

The Process of Changing a Bonded Neutral to Floating

Converting a bonded neutral to a floating neutral usually involves locating and removing the bonding strap or wire. This strap connects the neutral bus bar to the generator’s frame. This is often a relatively straightforward procedure for those with electrical knowledge.

However, this modification can void your warranty and alter the generator’s safety ratings. Always consult your owner’s manual and, ideally, a licensed electrician before attempting this. An improper modification can create serious hazards.

The Process of Changing a Floating Neutral to Bonded

If you have a floating neutral generator and need it bonded for standalone use, you might need to add a bonding strap. Some generators have a designated place for this. Others may require a specialized plug that creates the bond at the outlet.

Some generators, especially inverter types, cannot be easily modified. Again, always check your manual and consider professional help. Safety is paramount here.

Common Mistakes to Avoid

Avoiding these common errors will keep you and your property safe.

• Double Bonding: Connecting a bonded neutral generator to a home with an existing ground bond. This creates dangerous ground loops.
• No Grounding for Standalone Use: Using a floating neutral generator for standalone applications without providing a proper ground. This leaves you vulnerable to shock.
• Ignoring the Manual: Not consulting your generator’s owner’s manual for specific instructions and warnings.
• Improper Modifications: Attempting to change the neutral configuration without adequate electrical knowledge or professional guidance.
• Overlooking GFCI Protection: Assuming a correctly bonded or floating neutral negates the need for Ground Fault Circuit Interrupter (GFCI) protection. GFCI outlets are still crucial for personal safety.

Choosing the Right Configuration: A Quick Checklist

Use this checklist to help you decide which configuration is best for you:

• Are you plugging items directly into the generator’s outlets? (Likely need bonded)
• Are you connecting the generator to your home’s electrical panel via a transfer switch? (Likely need floating)
• Have you read your generator’s owner’s manual regarding neutral configuration?
• Do you know if your home’s electrical system has a main ground bond? (Most do).
• If unsure, are you willing to consult a qualified electrician for advice?

Bonded vs. Floating Neutral: A Comparison Table

Feature	Bonded Neutral Generator	Floating Neutral Generator
Neutral-to-Frame Connection	Yes, connected internally	No, isolated from frame
Best Use Case 1	Standalone portable power (e.g., camping, job sites)	Home backup with transfer switch
Best Use Case 2	Powering individual appliances directly	Connecting to an existing grounded electrical system
Safety Consideration 1	Provides internal ground path for fault currents	Relies on external ground path (e.g., home’s panel)
Safety Consideration 2	Avoid connecting to home via transfer switch (creates double bond)	Must have a proper external ground for safety if standalone
Typical Factory Setup	Most portable generators are bonded	Some inverter generators, or those for RV use, may be floating

Conclusion

Making the right choice between a bonded or floating neutral generator is more than just technical; it’s about your safety and the longevity of your equipment.
